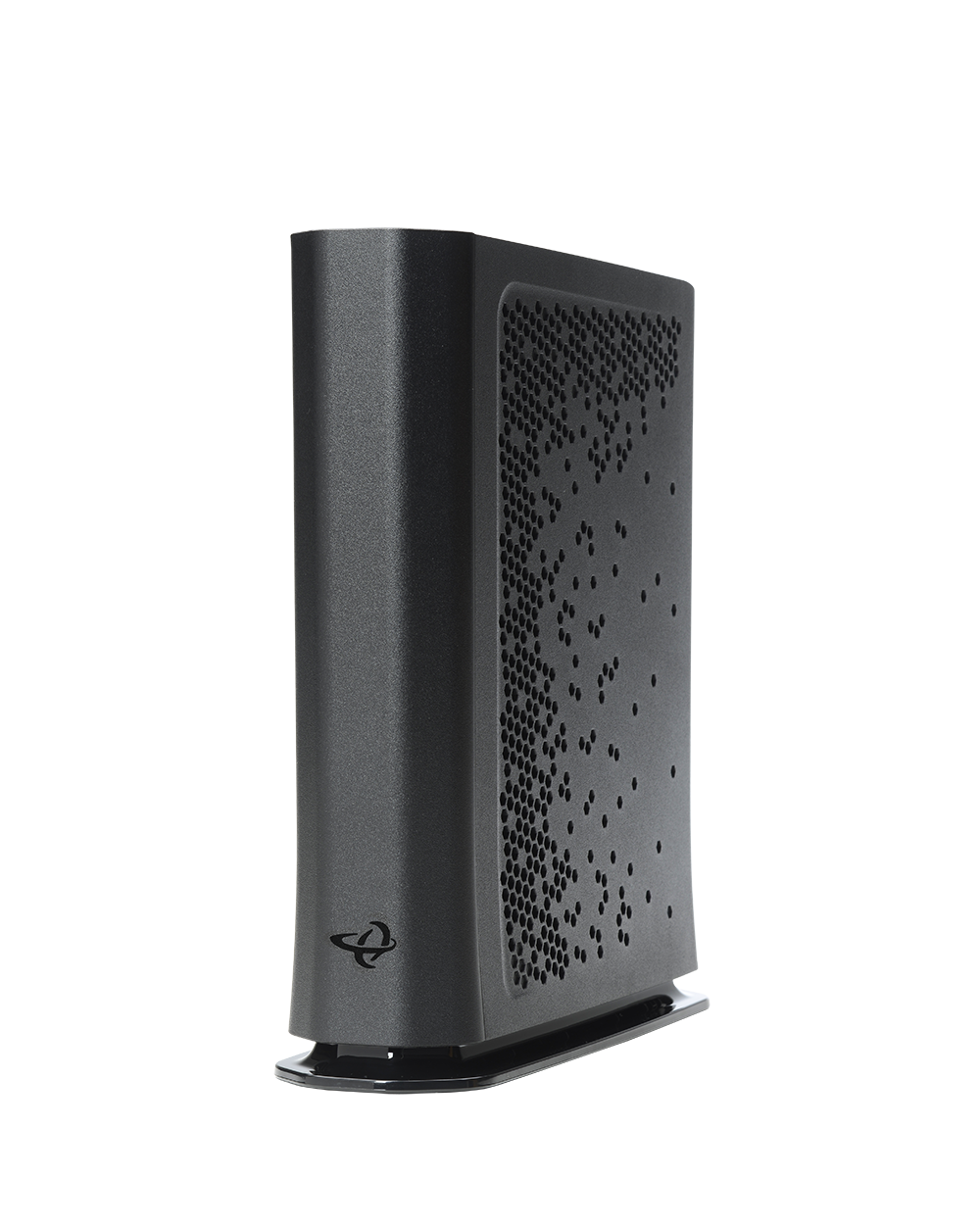

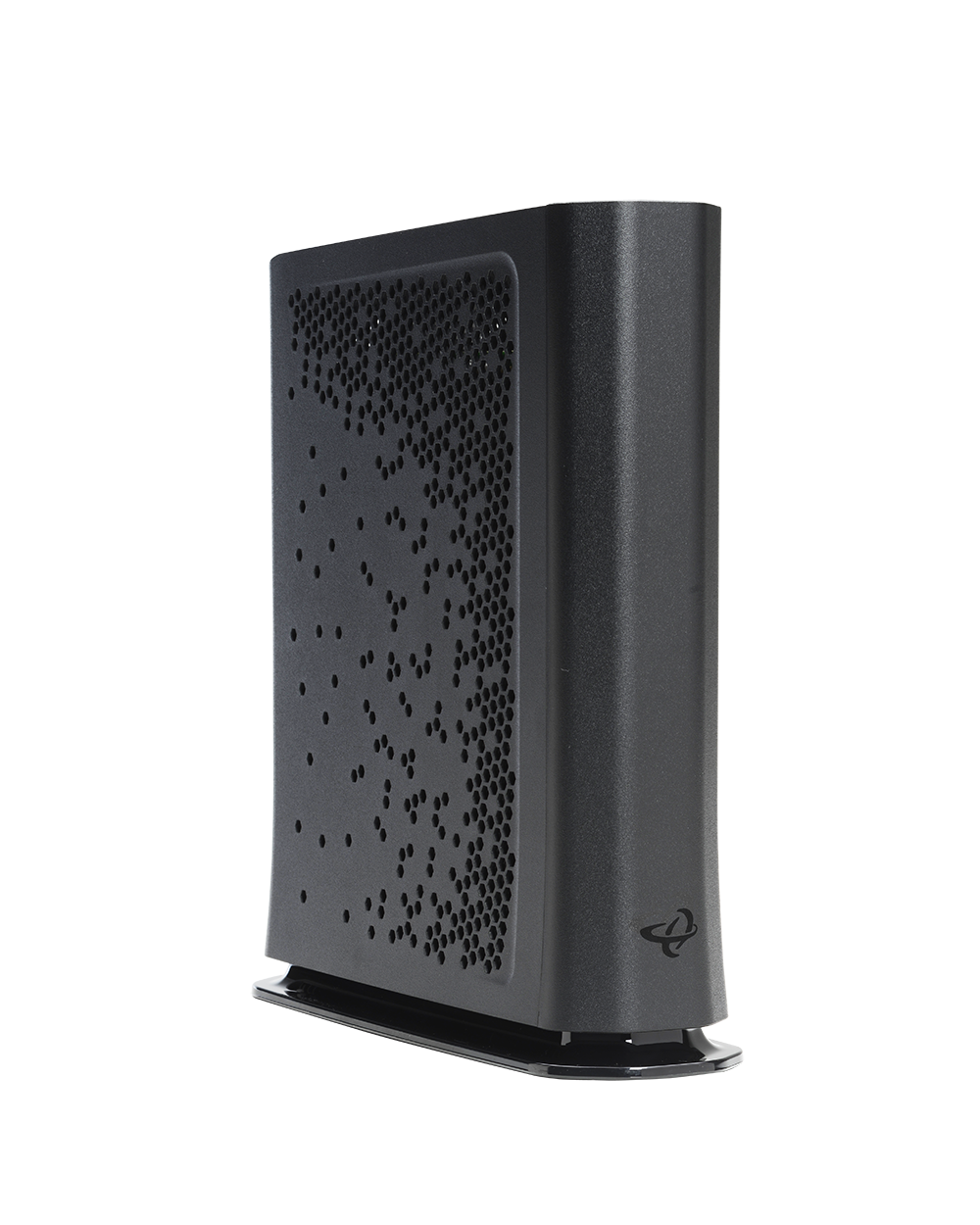

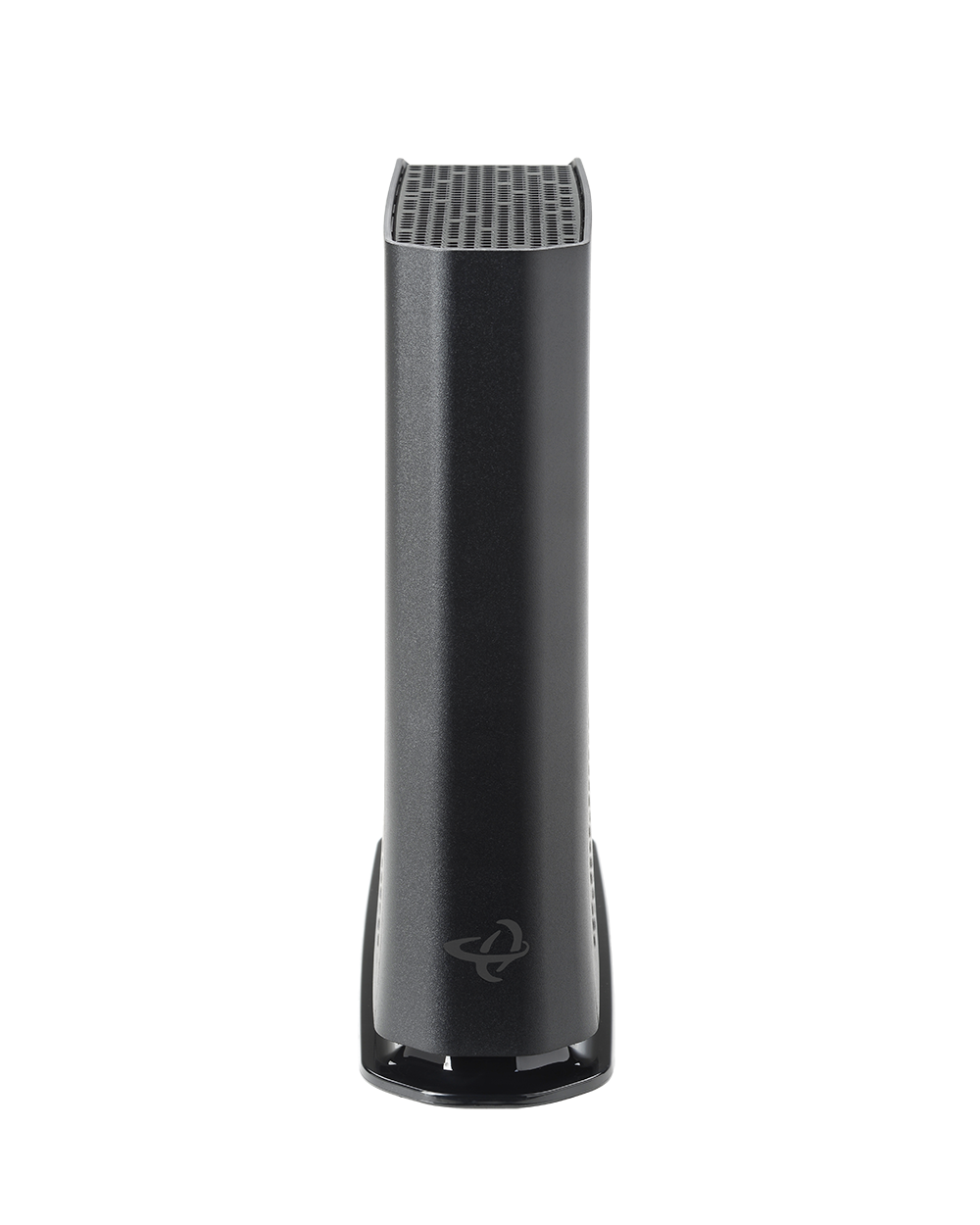

DOCSIS 3.1 Cable Modem Router with Wi-Fi 6 and Voice


Deliver it all with the powerful CODA-5814. This powerful cable gateway supports symmetric multi-Gigabit speeds with DOCSIS 3.1 and blazing fast speeds for every device in the home with Wi-Fi 6. Subscribers will enjoy stutter-free gaming, brilliant 4k and 8k streaming, flawless video conferences and more. The CODA-5814 offers ultra-fast wired connections with wired 2.5 Gbps and GigE ports, and support for voice. You can also cost-effectively meet subscriber demand for upstream bandwidth with the software switchable return path.
Available in NA

Supports DOCSIS 3.1

DOCSIS 3.1 takes Internet speeds to a new level, increasing the capacity of HFC networks by more than 50 percent and reducing latency. This means your customers can connect more devices, enjoy richer digital experiences, and get fast, reliable Internet service for all of today and tomorrow’s needs.


Software-switchable Frequency

You can seamlessly support today’s and tomorrow’s upstream bandwidth demands with the software switchable return path. Want to upgrade customers to higher-tier upstream speeds? No problem. You can remotely change to the high-split (5-204MHz) return path at any time – there’s no need to swap out hardware or send out a technician.


Extended Downstream up to 1218 MHz

Future proof your network and offer even faster speeds by expanding the downstream frequency range up to 1218MHz.


Power the Connected Home with Wi-Fi 6

Deliver rock solid, ultra-fast coverage for all your customer’s smart home, gaming, mobile and media devices. Wi-Fi 6 (802.11ax) isn’t just better Wi-Fi. It revolutionizes Wi-Fi. You get blazing fast speeds, four times more device capacity and greater coverage. The CODA-5814 provides a superior Wi-Fi experience with 4×4 2.4GHz 802.11ax and 4×4 5GHz 802.11ax dual band MU-MIMO. And if a customer requires extra coverage, simply pair the CODA-5814 with Hitron extenders/mesh pods.


Ultra-fast Wired Connections

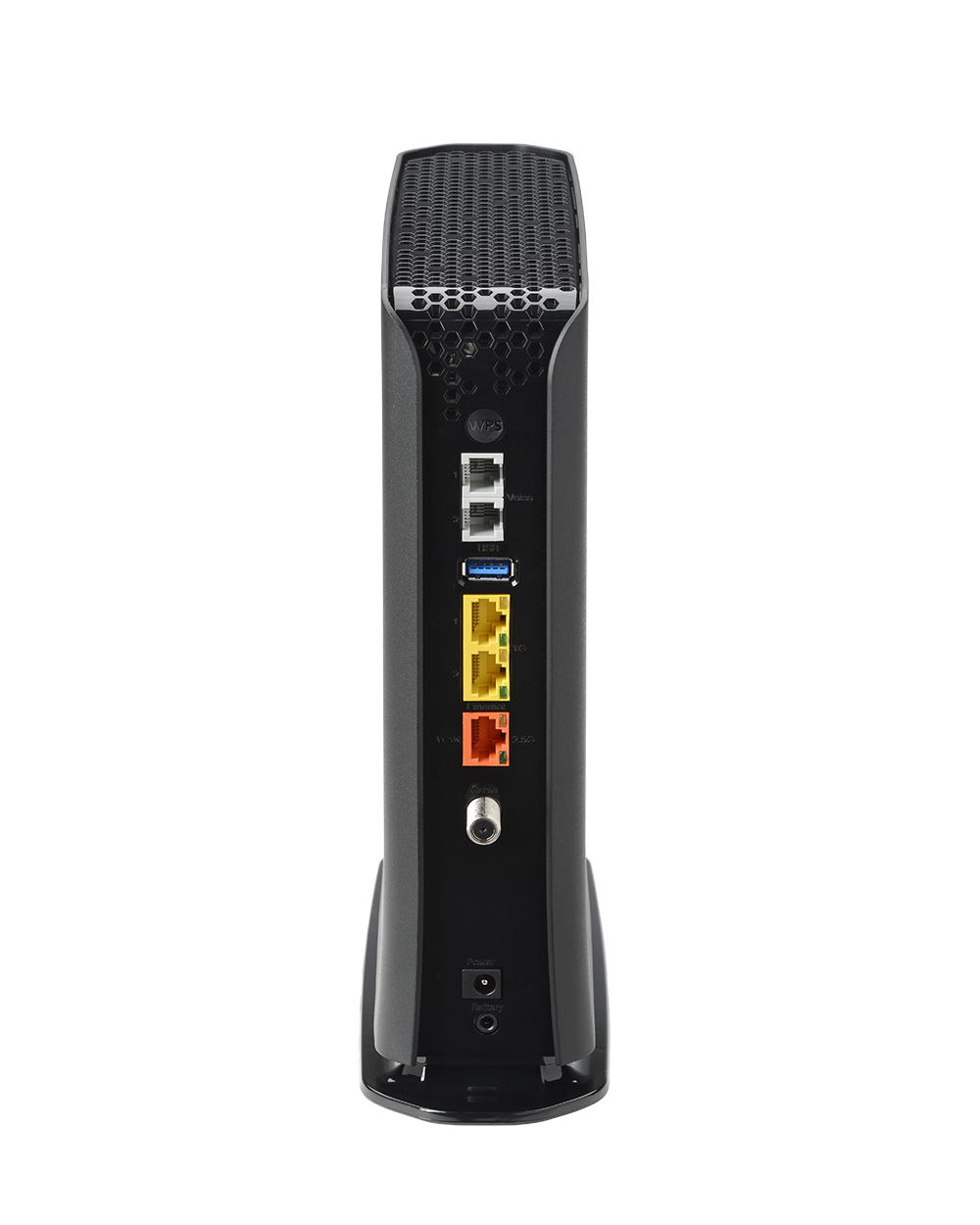

The CODA-5814 supports a 2.5 GigE port along with two Gigabit Ethernet ports to provide a wired connection to an HDTV, home office router and more.


DOCSIS 3.0 Compatibility

Deploy the CODA-5814 on your current DOCSIS 3.0 networks. As a DOCSIS 3.0 modem, it offers 32 bonded downstream and 8 bonded upstream channels. You won’t need to change customer hardware when you upgrade to DOCSIS 3.1.


Integrated Telephony Support

With two integrated HD telephone ports, you can meet all your subscriber’s connectivity needs.


Easy to Setup, Secure and Manage

Installation is a snap with the CODA-5814. Pre-configured and pre-enabled WiFi security via WiFi Protected Setup (WPS) means that end users can rapidly setup a secure wireless network without any manual configuration. You get comprehensive remote management and troubleshooting with SNMP, TR-069 and HNAP. And the CODA-5814 supports the Hitron ecosystem, including MyHitron (a mobile application that lets end users manage their network) and HitronCloud management and analytics for service providers.

Key Specifications

  • DOCSIS 3.1 2×2 multi-carrier OFDM
  • DOCSIS 3.0 32×8 channel bonding
  • Switchable frequency: 5-85/5-204MHz
  • Extended downstream up to 1218MHz
  • Two Voice Ports
  • 4×4 2.4GHz 802.11ax and 4×4 5GHz 802.11ax dual band concurrent MU-MIMO internal antennas
  • Extensive operator control via configuration file and SNMP
  • Integrated DLNA Media Server with support for video, audio and image serving
  • IPv6 routing
  • TR-069 and HNAP for easy setup and remote management
  • Enhanced management and stability for low total cost of ownership
  • One 2.5 Gbps and two GigE Ethernet ports
  • Hitron Ecosystem Support (OptiMy, HitronCloud, MyHitron)


*DOCSIS 3.1 is a CableLabs standard for high speed Internet access that defines support for up to 10 Gbps downstream and 1 Gbps upstream. Actual cable operator network speeds will vary and will be less than the calculated maximum possible speeds. Actual upload and download speeds are affected by several factors including, but not limited to: the capacity of your cable operator’s network, the services offered by your cable operator, cable and Internet network traffic, your computer equipment etc. Final speeds will also be limited by each device and the quality of its connection to the modem or router.

Unleash the home network with the high performance CODA-5814 DOCSIS 3.1 Cable Modem Router with WiFi 6 and Voice.
