DOCSIS 3.1 Cable Modem Router with Wi-Fi 6, MoCA and Switchable Frequency


Surf, stream, game, and work faster than ever with the powerful CODA-5712 cable gateway. With support for DOCSIS 3.1, the CODA-5712 is capable of multi-Gigabit speeds, up to 10 Gbps downstream. Integrated Wi-Fi delivers ultra-fast and reliable wireless coverage for every device in the home. The result is brilliant 4K/8K streaming, stutter-free VR applications, a flawless smart home, easy video conferencing and more. And that’s not all. The CODA-5712 supports MoCA 2.0 channel bonding, along with wired 2.5 Gbps and GigE ports. And a software switchable return frequency lets you upgrade to faster upstream speeds with ease.
Available NA
DOCSIS 3.1 Cable Modem Router - Hitron CODA5712

10 Gbps Downstream with DOCSIS 3.1

Take Internet speeds to a new level with DOCSIS 3.1 – which can increase the capacity of HFC networks by more than 50 percent. Subscribers can connect more devices, enjoy richer digital experiences and fast Internet service for all of their needs.


Software Switchable Return Path

Easily meet upstream bandwidth demands with a software switchable upstream frequency. You can upgrade to the high-split (5-204MHz) return path at any time without needing to replace the customer hardware or send a technician to the customer home.


Better, Faster Wireless with Wi-Fi 6

Get ready for amazingly fast Wi-Fi. The CODA-5712 has an integrated WiFi 4×4 2.4GHz 802.11ax and 4×4 5GHz 802.11ax dual band MU-MIMO access point for blazing fast speeds, greater coverage and rock-solid performance for all your smart home, gaming, mobile and media devices. If extra coverage is needed, pair the gateway with Hitron extenders/mesh pods.


Gigabit Ethernet Wired Connections

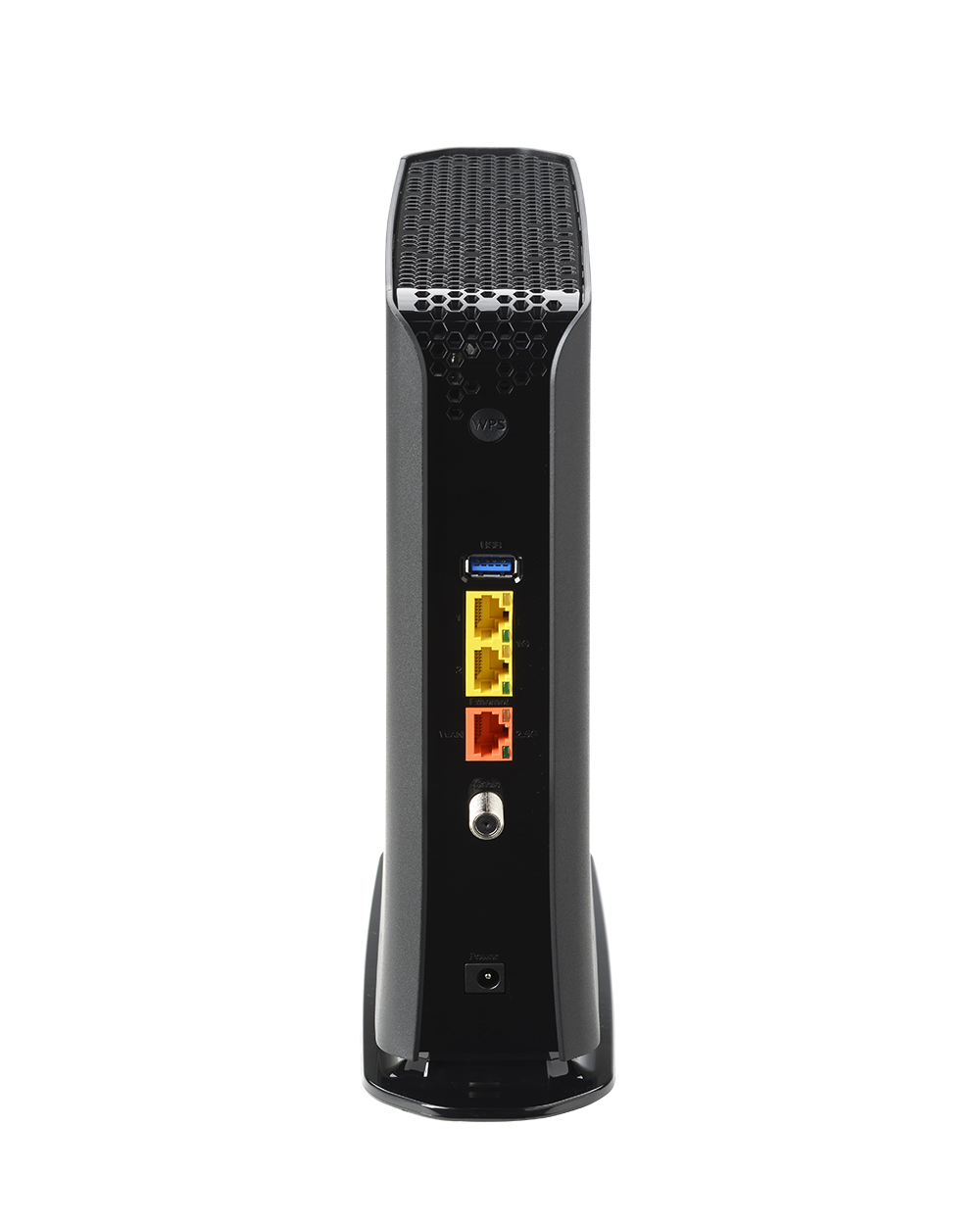

Connect wired clients or routers in the home office, home theater and more with the gateway’s 2.5 GigE port and two Gigabit Ethernet ports.


Bonded MoCA 2.0 for a Superfast Wired Backbone

MoCA 2.0 channel bonding provides a near-Gigabit wired backbone through the home’s coax, making it easy to extend the Wi-Fi network to far corners of the home.


Easy to Setup, Secure and Manage

The CODA-5712 supports pre-configured and pre-enabled WiFi security via WiFi Protected Setup (WPS), making it incredibly easy to setup a secure wireless network. Providers get complete remote management and troubleshooting capabilities via SNMP, TR-069 and HNAP. Further, the CODA-5712 supports MyHitron (a mobile application that lets end users easily manage their network) and HitronCloud management and analytics for service providers.

Key Specs

  • DOCSIS 3.1 2×2 multi-carrier OFDM
  • DOCSIS 3.0 32×8 channel bonding
  • Switchable upstream: 5-85MHz / 5-204MHz
  • 4×4 2.4GHz 802.11ax and 4×4 5GHz 802.11ax dual band concurrent MU-MIMO internal antennas
  • 16 SSIDs (8 SSIDs per radio)
  • Individual configuration for each SSID
  • MoCA 2.0 channel bonding
  • One 2.5 Gbps and two GigE Ethernet ports
  • Supports IPv4 and IPv6
  • TR-069 and HNAP for easy setup and remote management
  • Hitron Ecosystem Support (OptiMy, HitronCloud, MyHitron)
*DOCSIS 3.1 is a CableLabs standard for high speed Internet access that defines support for up to 10 Gbps downstream and 1 Gbps upstream. Actual cable operator network speeds will vary and will be less than the calculated maximum possible speeds. Actual upload and download speeds are affected by several factors including, but not limited to: the capacity of your cable operator’s network, the services offered by your cable operator, cable and Internet network traffic, your computer equipment etc. Final speeds will also be limited by each device and the quality of its connection to the modem or router.

Unleash the home network with the high performance CODA-5712 DOCSIS 3.1 Cable Modem Router with 802.11ax WiFi.
