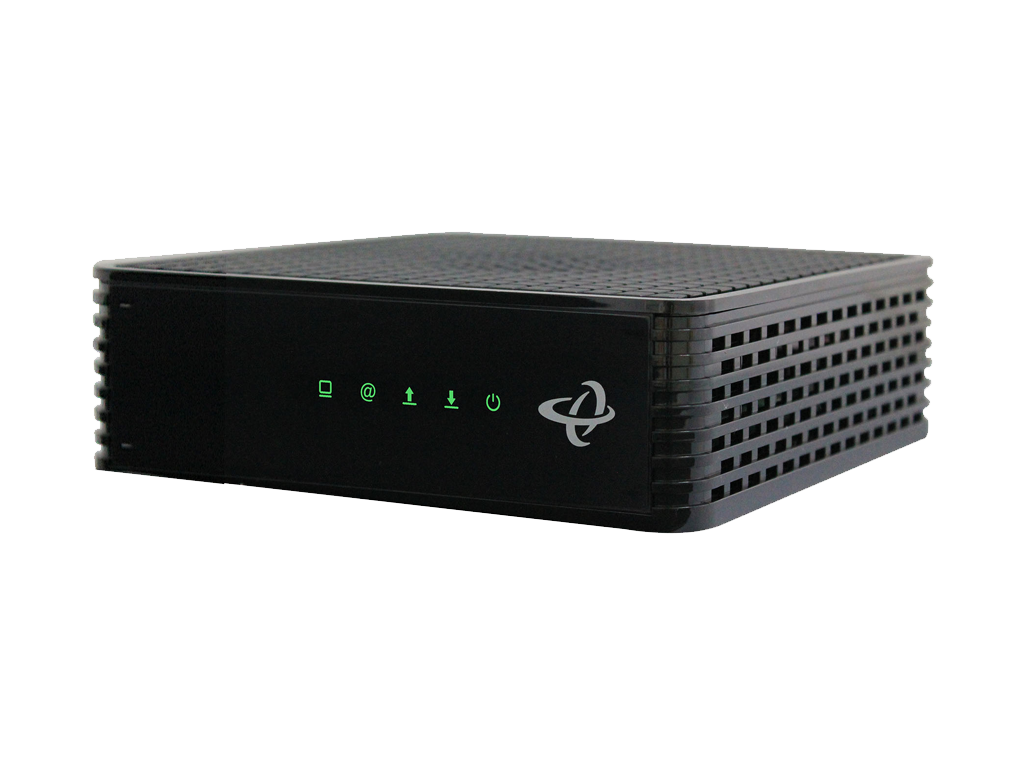

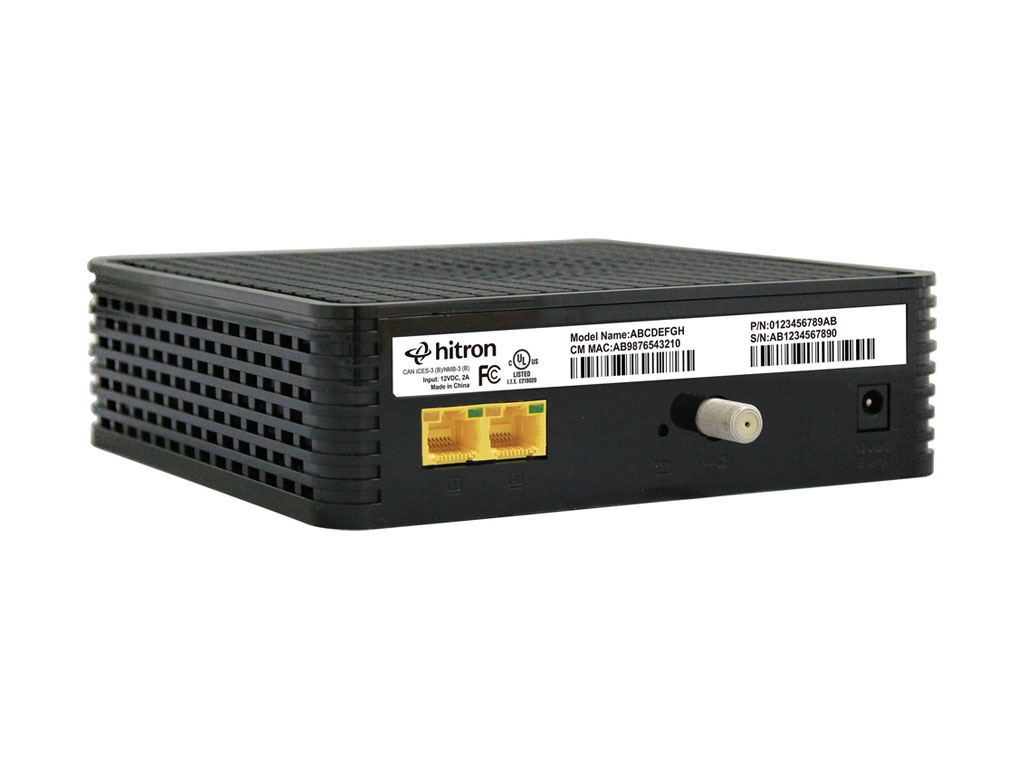

DOCSIS 3.1 Cable Modem


The CODA-47 DOCSIS 3.1 cable modem is the ideal choice for cable operators who want to offer high-speed and costs-effective broadband to their residential and business customers. This high-performance modem delivers speeds up to 2.5 Gbps with two bonded downstream channels over is DOCSIS interface, and its software switchable return path lets you seamlessly meet subscriber demand for upstream bandwidth with higher-tier packages. Subscribers will enjoy stutter-free gaming, brilliant 4k and 8k streaming, flawless video conferences and more.
Available in NA
DOCSIS 3.1 Cable Modem from Hitron - CODA47

DOCSIS 3.1 Certified for Multi-Gigabit Speeds

Take Internet speeds to a new level with DOCSIS 3.1, which reduces latency and increases the capacity of HFC networks by more than 50 percent. Your customers will enjoy fast and reliable Internet service for all their devices and applications.


Software-Switchable High-Split Return Path (204 MHz)

Whether you’re ready for a high-split return path today or tomorrow, the CODA-47 has you covered. With its software switchable return path, you can remotely change between 5-85MHz and 5-204MHz at any time, enabling you to seamlessly upgrade customers to more lucrative higher tier upstream speeds without changing hardware or sending out a technician.


DOCSIS 3.0 32×8 Channel Bonding

Deploy the CODA-47 on either a DOCSIS 3.1 or 3.0 network. As a DOCSIS 3.0 modem, the CODA-47 supports 32 bonded downstream and 8 bonded upstream channels.


Easy to Setup and Manage

The user-friendly CODA-47 is designed to make installation as intuitive and easy as possible. With a built-in TFTP client, the modem automatically gets the IP address and configuration data from the network server, so it’s up and running with just a few simple connections. And you get complete remote control over the modem for fast and effective troubleshooting with SNMP.

Key Specifications

  • DOCSIS 3.1 certified
  • DOCSIS 3.1 2×2 multi-carrier OFDM
  • DOCSIS 3.0 32×8 channel bonding
  • Switchable 5-85/5-204MHz Upstream
  • Extensive operator control via configuration file and SNMP
  • Supports Business Services over DOCSIS
  • Built in MoCA® immunity filter
  • Supports IPv4 and IPv6


*DOCSIS 3.1 is a CableLabs standard for high speed Internet access that defines support for up to 10 Gbps downstream and 1 Gbps upstream. Actual cable operator network speeds will vary and will be less than the calculated maximum possible speeds. Actual upload and download speeds are affected by several factors including, but not limited to: the capacity of your cable operator’s network, the services offered by your cable operator, cable and Internet network traffic, your computer equipment etc. Final speeds will also be limited by each device and the quality of its connection to the modem or router.

Let us tell you more about the CODA-47 DOCSIS 3.1 Cable Modem.
