DOCSIS 3.1 Cable Gateway with WiFi 6 and Voice

CODA5519W

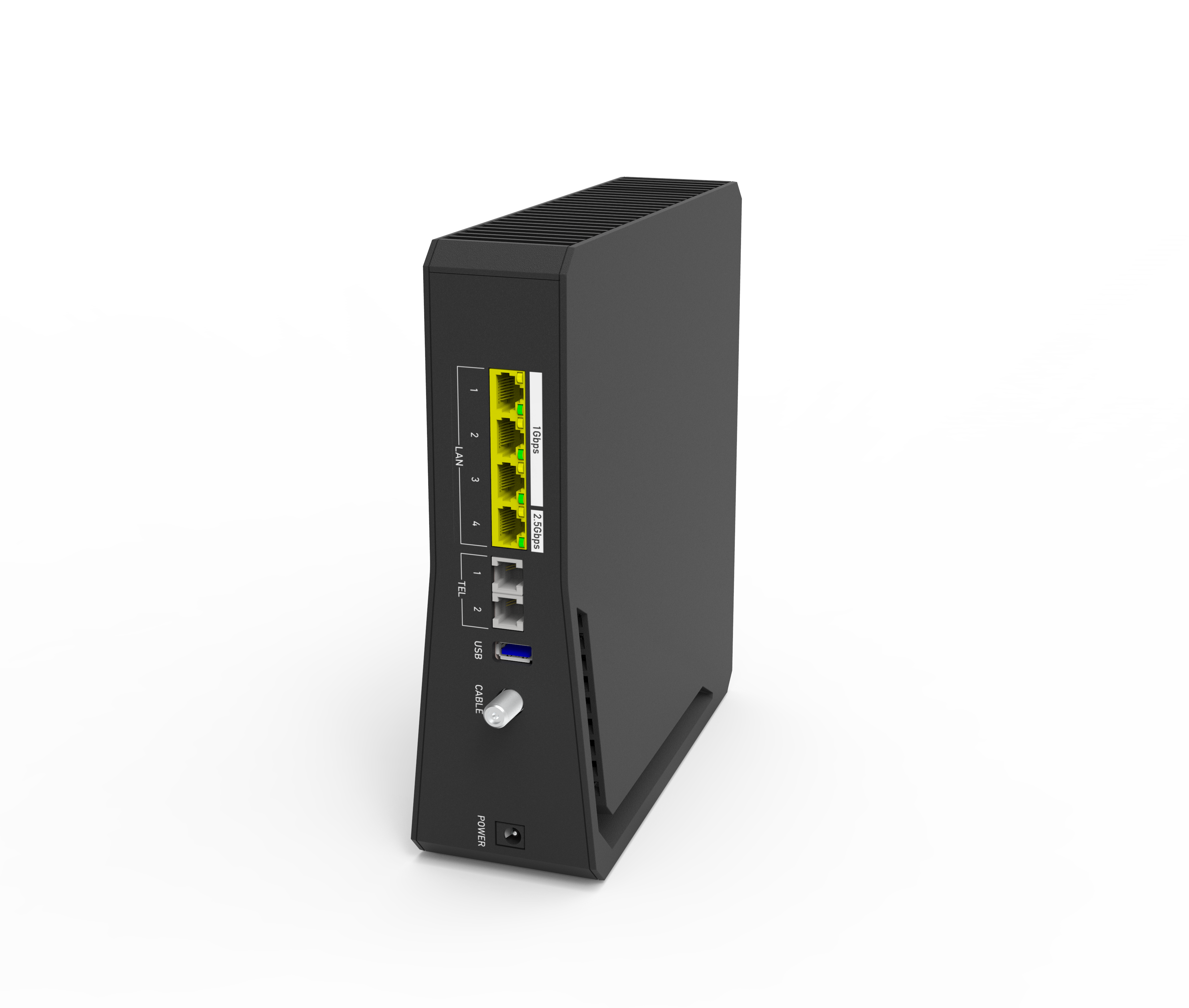

The powerful CODA5519W cable gateway forms the heart of today and tomorrow’s wireless home. The gateway supports DOCSIS 3.1 – up to 5 Gbps* downstream - and next generation Wi-Fi 6 speeds up to 9.6Gbps and 2.5Gig wired ports, along with two HD voice ports. This powerful hub can meet virtually any home and small business networking need.
Available in EMEA, NA
Contact Sales
ONT Fiber Optic Modem | NOVA-2002 | Hitron

DOCSIS 3.1 Certified

DOCSIS 3.1 takes Internet speeds to a new level, increasing the capacity of HFC networks by more than 50 percent and reducing latency. This means your customers can connect more devices, enjoy richer digital experiences, and get fast, reliable Internet service for all of today and tomorrow’s needs.



The Power of Wi-Fi 6

802.11ax isn’t just better Wi-Fi. It revolutionizes Wi-Fi. It expands the Wi-Fi band from 80 MHz to 160 MHz – that means blazing speeds. It uses 8×8 uplink/downlink, MU-MIMO, OFDMA, and BSS to deliver up to 4x more device capacity. And it uses a 4x longer OFDM symbol to create more than 4x more sub carriers for increased coverage and speeds. The result is rock solid, ultra-fast coverage for all your smart home, gaming, mobile and media devices.



Five devices in One

The CODA5519W integrates six products into a single device: a multi-gigabit DOCSIS 3.1 modem, a home router with one 2.5G and two 1G ports for blazing fast wired connections, an 802.11ax dual-band access point for superior wireless coverage and speed, two HD voice ports for telephony applications and a DLNA Media Server for video, audio and image serving.



Ultra-fast 2.5 GigE Port

For wired clients in the home theater or home office, a 2.5 GigE port plus two Gigabit Ethernet ports offer ultra-fast connections.



Compatible with DOCSIS/EuroDOCSIS 3.0

The CODA5519W can be deployed on your current network. As a DOCSIS/EuroDOCSIS 3.0 modem, it offers 32 bonded downstream and 8 bonded upstream channels. When you upgrade the network to DOCSIS 3.1, you won’t need to swap out customer hardware.



Easy to Setup and Manage

Installation is a snap for your end users. The built-in TFTP client automatically gets the IP address and configuration data from the network server. That means a few simple connections is all it takes to get up and running. The CODA5519W supports pre-configured and pre-enabled Wi-Fi security via Wi-Fi Protected Setup (WPS), allowing end users to rapidly setup a secure wireless network without manual configuration. And SNMP, TR-069 and HNAP support provide total remote control over the device for fast and effective troubleshooting.

Key Specifications

  • DOCSIS 3.1 2×2 OFDM/OFDMA
  • DOCSIS/EuroDOCSIS3.0 32×8 Channel Bonding
  • 4×4 2.4GHz 802.11ax R2 and 4×4 5GHz 802.11ax R2 Dual-band Concurrent MU-MIMO Internal Antennas
  • 16 SSIDs (8 SSIDs per Radio)
  • Individual Configuration for each SSID
  • One 2.5 GigE and three 1 GigE Ports
  • Two HD Voice Ports
  • SIP and MGCP Support
  • TR-069 and HNAP for Easy Setup and Remote Management
  • Optional HitronCloud home network management support

Documentation

DATA SHEET
*DOCSIS 3.1 is a CableLabs standard for high speed Internet access that defines support for up to 5 Gbps downstream and 1 Gbps upstream. Actual cable operator network speeds will vary and will be less than the calculated maximum possible speeds. Actual upload and download speeds are affected by several factors including, but not limited to: the capacity of your cable operator’s network, the services offered by your cable operator, cable and Internet network traffic, your computer equipment etc. Final speeds will also be limited by each device and the quality of its connection to the modem or router.

The CODA5519W – the heart of today and tomorrow’s wireless home.
