DOCSIS 3.0 Cable Gateway with Wi-Fi 5 and Voice

CGNV5-PRO

The CGNV5-PRO is a flexible DOCSIS 3.0 cable gateway that offers 5-85 MHz frequency and extended downstream. Operators can use one gateway in various deployment configurations.
Only sold through Service Providers
Cable Gateway DOCSIS 3.0 eMTA Voice CGNV5-PRO

DOCSIS 3.0 Compliant

The Hitron CGNV5-PRO has the capacity to receive 1.0Gbps over its DOCSIS 3.0 interface with 24 bonded channels.



High Performance Networking

The integrated 3×3 802.11n+4×4 802.11ac dual band MIMO access point significantly improves customer experience extending range and coverage with blazing speeds up to Giga speed.



Easy to Setup and Manage

Wi-Fi Protected Setup (WPS) is pre-configured and enabled by default. With WPS enabled the end-user can quickly setup a secure wireless network without the need to manually configure the security settings.



Key Specs

  • DOCSIS 3.0 compliant 24×8 channel bonding
  • Wi-Fi Access Point with 3×3 802.11n+4×4 802.11ac dual band MIMO internal antennas
  • Extensive operator control via configuration file and SNMP

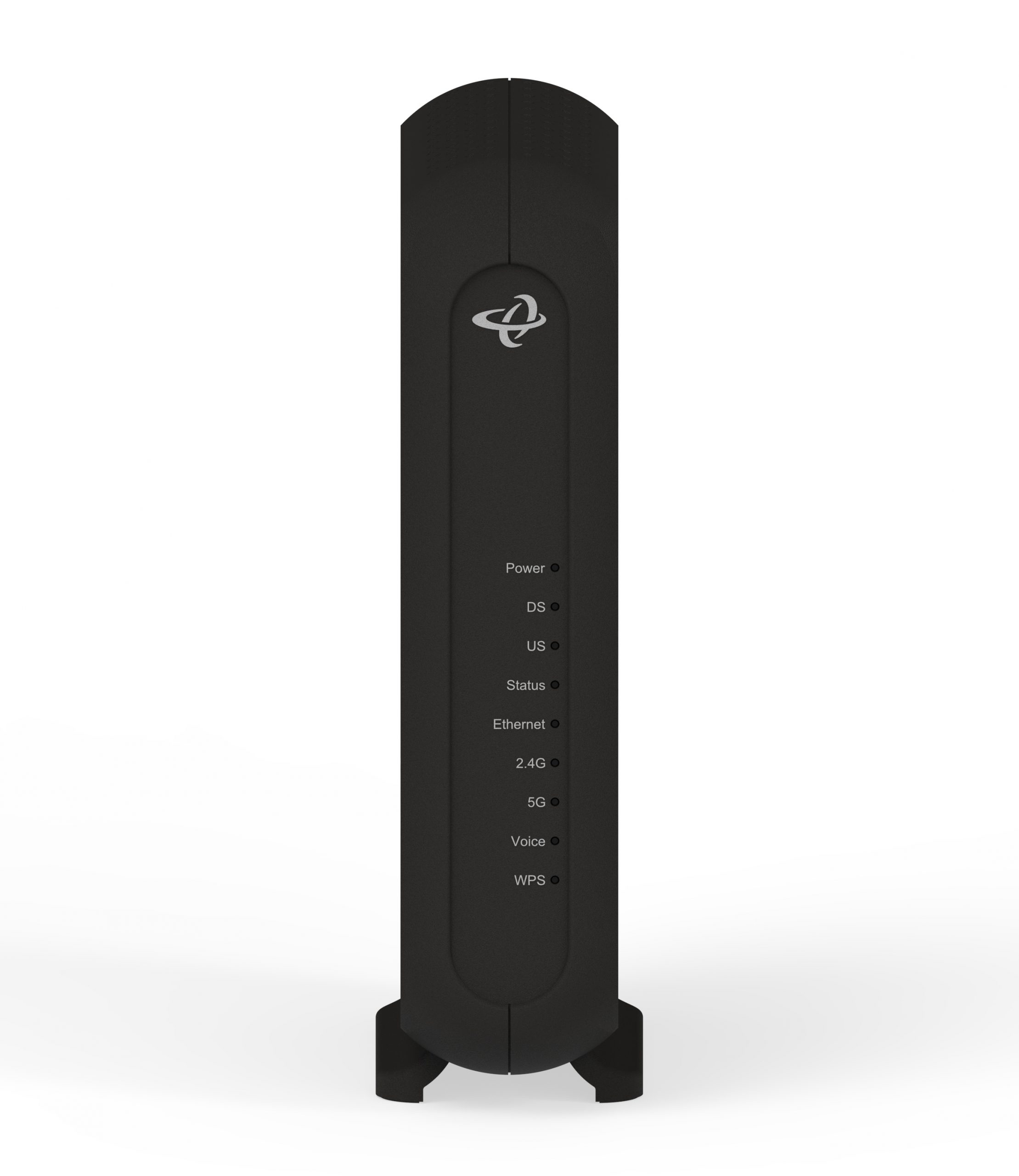

  • Well-defined LEDs clearly display device and network status

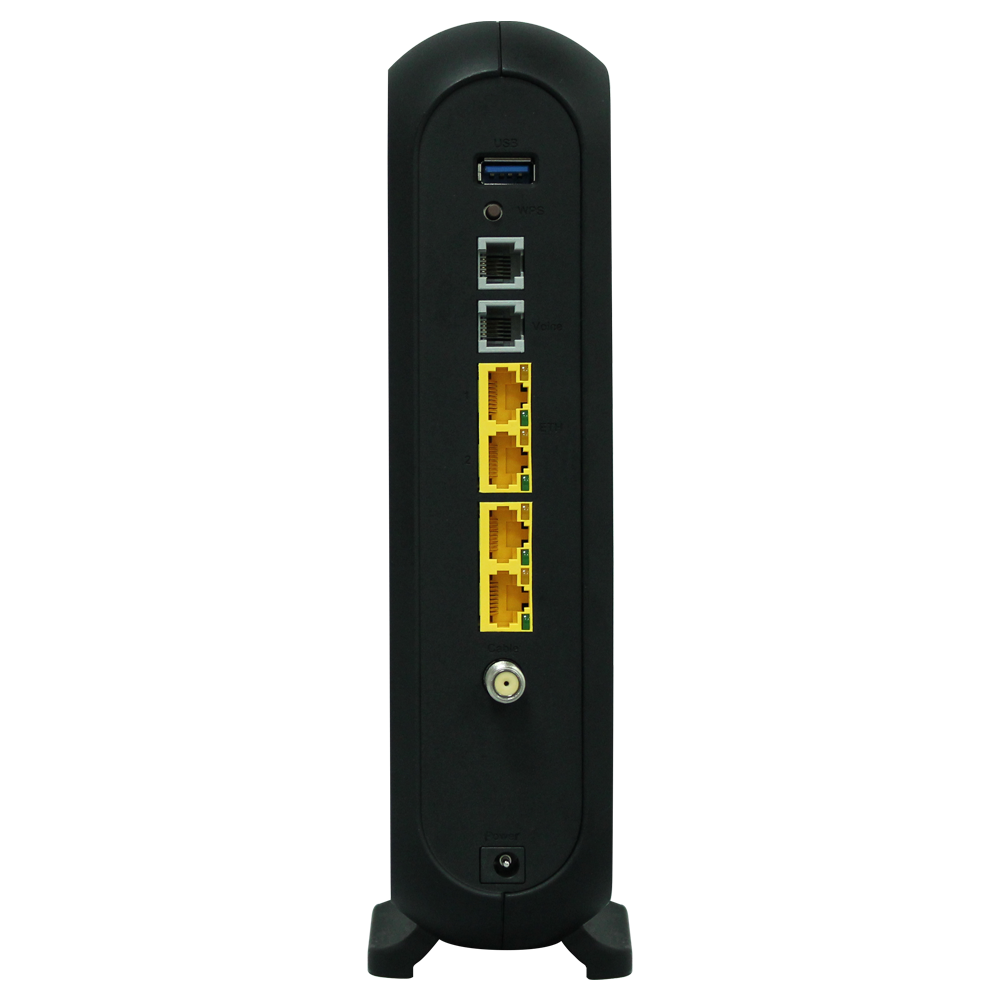

  • Four 1G Ethernet ports
  • 2 HD voice ports with SIP or MGCP support
  • TR-069 for easy setup and remote management
  • Enhanced management and stability for low total cost of ownership
  • Optional HitronCloud home network management support

Documentation

Let us tell you more about the CGNV5-PRO DOCSIS 3.0 Cable Gateway.
