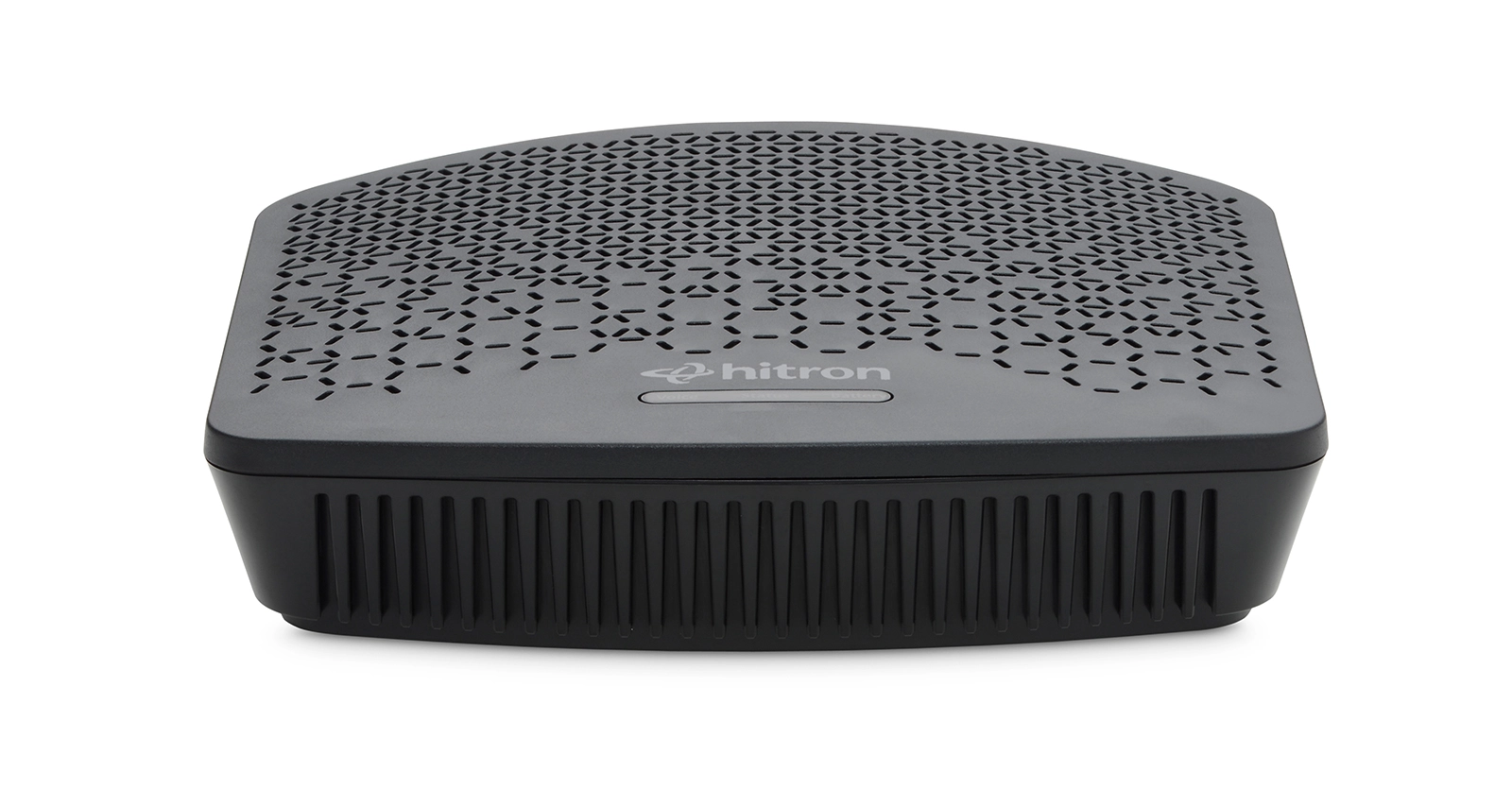

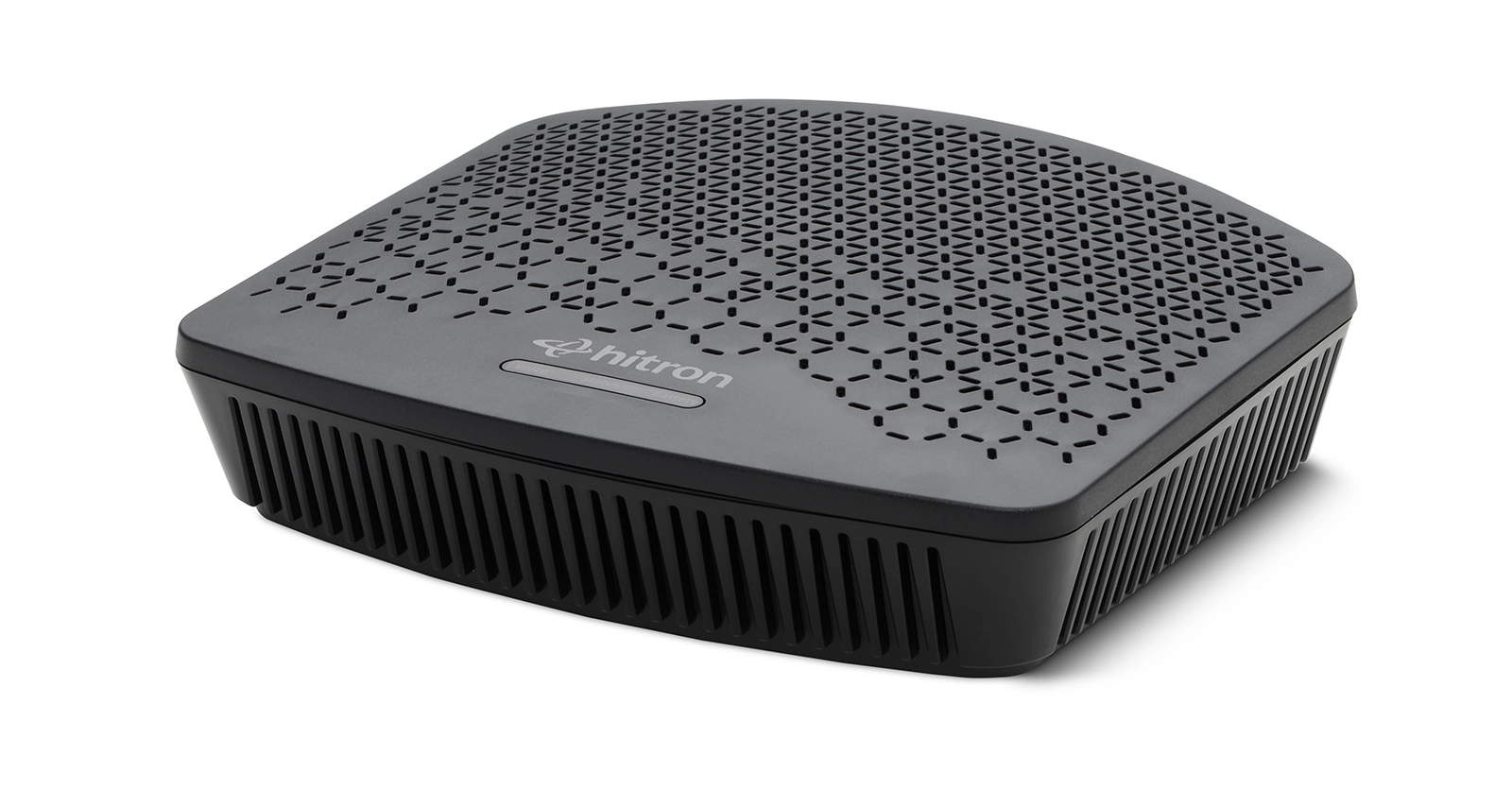

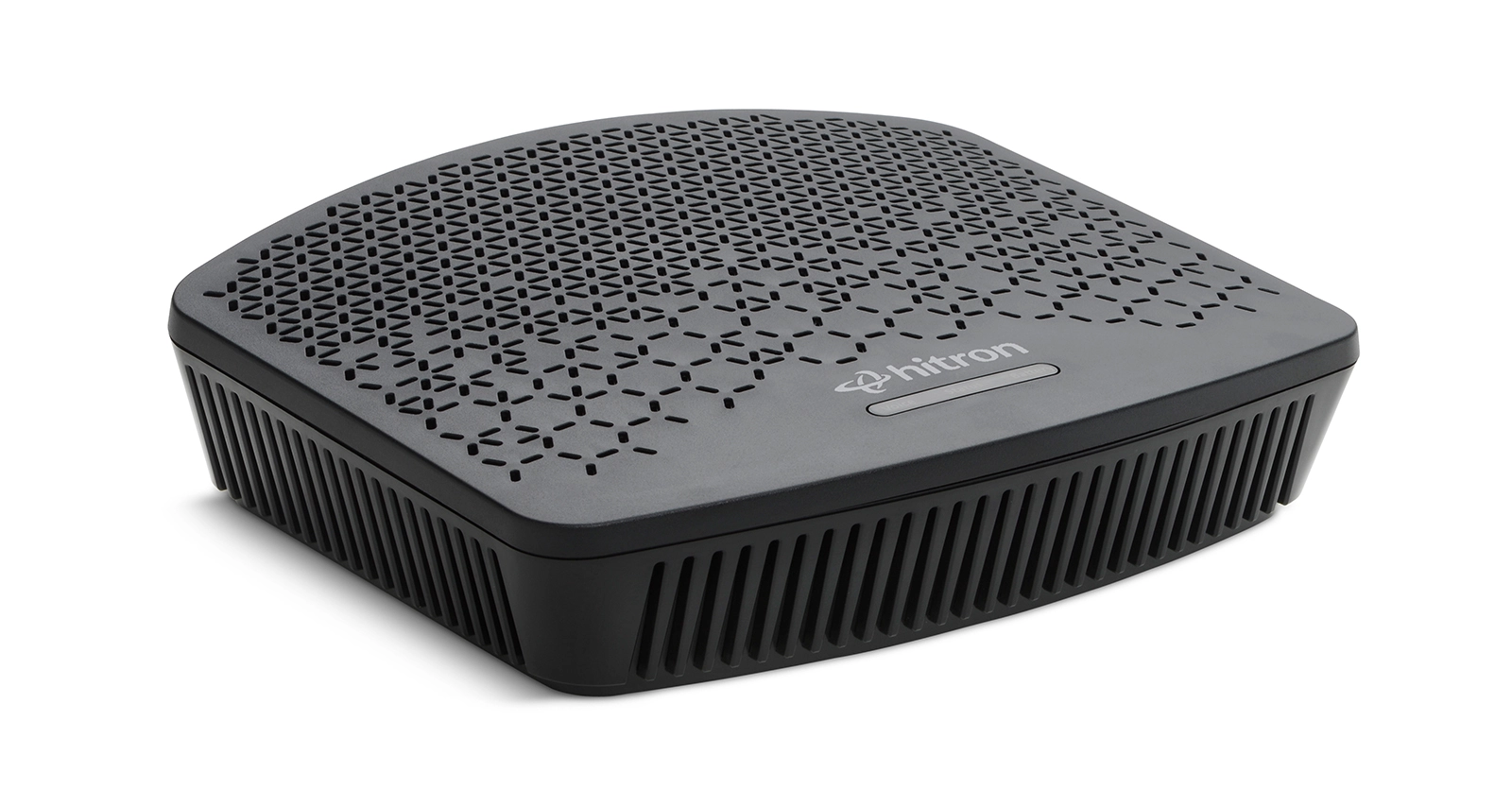

10G xPON ONT/ONU
with PTP timing
NOVA2302
- Supports XGS PON and EPON in one unit
- 10G upstream for premium tier services
- PTP timing enables operators to roll out 5G services
Answer the Need for Speed with 10G xPON
Next generation 10G upstream and downstream speeds future proof your service offerings for business and residential customers. You can level up to premium high ARPU service tiers. And symmetrical 10G answers everyone’s bandwidth needs – including HD/UHD video-on-demand, high-resolution VR, UHD gaming, premium telecommuting and more.
Add 5G Mobile to your Service Bundles
Now you can leverage the capacity of your networks to diversify your service offerings with 5G mobile. With support for PTP (Precision Time Protocol), NOVA2302 meets 5G’s tight timing requirements. With a NOVA2302 in a customer’s house, you can deliver a better call quality experience – no choppy or garbled calls.
Faster Performance
With an updated chipset, NOVA2302 provides more efficient package handling and better throughput than prior generation 10G ONU/ONT devices.
Flexible Fiber Options: 10G-EPON, XG-PON, and XGS-PON
With support for IEEE 802.3av 10G-EPON, ITU-T G.987.2 XG-PON and ITU-T G.9807.1 XGS-PON, you can deploy the NOVA2302 in multiple fiber architectures.
Keep Using your Current DOCSIS Management Systems
NOVA2302 helps ease your migration to fiber with support for DOCSIS DPoE 2.0 (DOCSIS Provisioning over EPON). It works with your existing DOCSIS provisioning, billing and management system, so there’s no need to overhaul your backend systems.
10G LAN Home and Business Networking

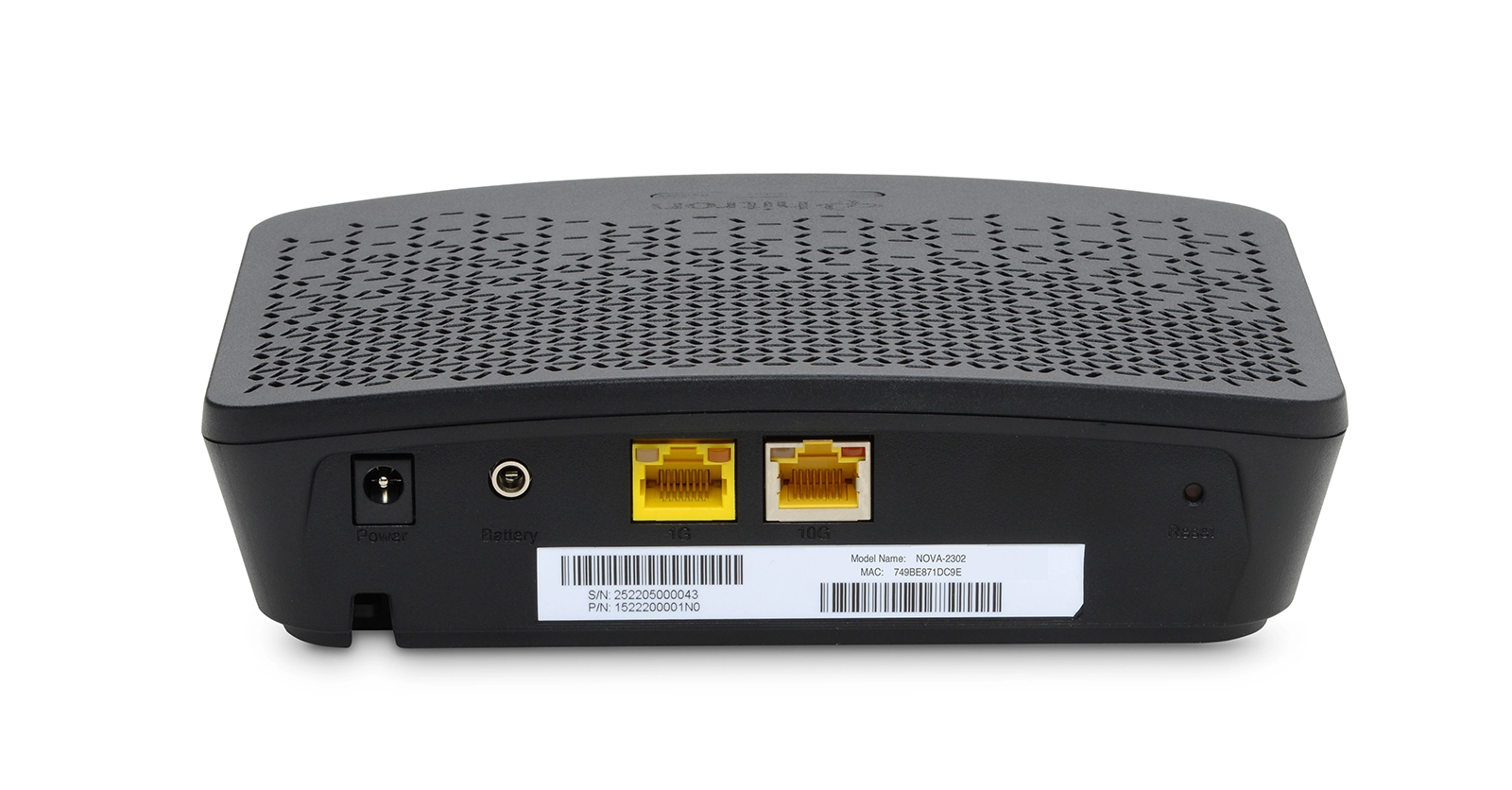

If you’re offering 10G access speeds, you need to make sure your customers are taking full advantage of the bandwidth. That’s why the NOVA2302 is equipped with one 100/1000/2.5G/5G/10G Ethernet port and one 10/100/1000 Ethernet port.
Fast, Simple Deployment, Monitoring and Management
We’ve optimized the NOVA2302 for end user simplicity. Your customers will have no trouble installing the ONT themselves. Once connected, the built-in DHCP client does the rest, automatically obtaining the configuration and IP address from the server – no manual configuration required. And 802.3ah OAM support enables remote management.
Key Specifications
- IEEE 802.3av 10G-EPON compliant
- ITU-T G.987.2 XG-PON compliant
- ITU-T G.9807.1 XGS-PON compliant
- DOCSIS DPoE 2.0 compliant
- 1 100/1000/2.5G/5G/10GBASE-T Ethernet port
- 1 10/100/1000BASE-T Ethernet port
- Extensive operator control via configuration file and IEEE 802.3ah OAM
