10G xPON ONU
with Voice

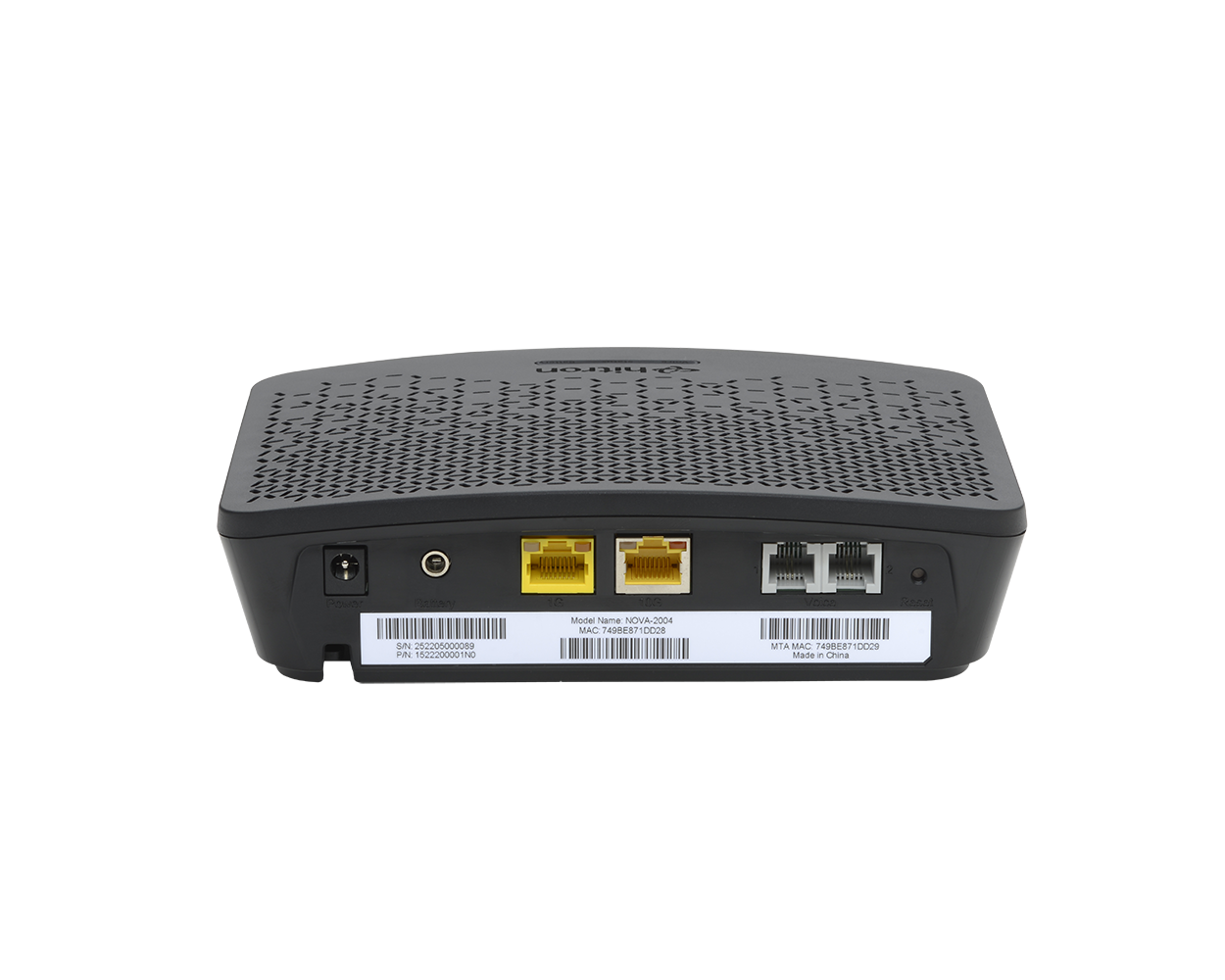

NOVA-2204

Deliver high ARPU premium business and residential services with Hitron’s NOVA-2204 10G xPON ONT/ONU. With a 10 Gigabit PON fiber interface, this powerful solution delivers speeds up to 10 Gbps* downstream and 10 Gbps* upstream. You can meet everyone’s most bandwidth-demanding applications today and tomorrow, including telecommuting, HD and UHD video on demand, ultra high speed Internet access, voice, interactive medi a services and more.
Available N.A, EMEA, CALA, APAC
ONT Fiber Optic Modem | NOVA-2002 | Hitron

Flexible Fiber Options: 10G-EPON, XG-PON, and XGS-PON

Deploy the right solution for your network needs with support for IEEE 802.3av 10G-EPON, ITU-T G.987.2 XG-PON and ITU-T G.9807.1 XGS-PON.



Voice Service s and Optional Battery Back-up

The NOVA-2204 is a one-box solution with two FXS VoIP ports and a battery backup. You can deliver reliable voice service s to residential and SOHO subscriber s. The optional backup battery provides uninterrupt able voice service for over 24 hours during a commercial power outage (depending on model and utilization).



10G Home/Business Networking

You can make sure your subscriber ’s LAN network makes full use of the 10G access speeds.  The NOVA-2204 supports one 10GigE and one 1GigE port.



Keep Using your Current DOCSIS Management Systems

NOVA-2204 helps ease your migration to fiber with support for DOCSIS DPoE 2.0 (DOCSIS Provisioning over EPON). It works with your existing DOCSIS provisioning, billing and management system, so there’s no need to overhaul your backend systems.



Optional Battery Backup

An optional battery backup can last more than 24 hours during a commercial power outage to keep your business and residential customers connected.



Fast, Simple Deployment, Monitoring and Management

We’ve optimized the NOVA-2204 for end user simplicity. Your customers will have no trouble installing the ONT themselves. An integrated fiber tray helps technicians do a professional install. Once connected, the built-in DHCP client does the rest, automatically obtaining the configuration and IP address from the server – no manual configuration required. And 802.3ah OAM support enables remote management.

Key Specifications

  • IEEE 802.3av 10G-EPON compliant
  • ITU-T G.987.2 XG-PON compliant
  • ITU-T G.9807.1 XGS-PON compliant
  • DOCSIS DPoE 2.0 compliant
  • 1 100/1000/2.5G/5G/10GBASE-T Ethernet port
  • 1 10/100/1000BASE-T Ethernet port
  • Built-in fiber tray
  • Two FXS VoIP ports
  • Optional battery back-up

Documentation

The NOVA-2204 – Flexible 10G access for business and residential subscribers. Learn more.
